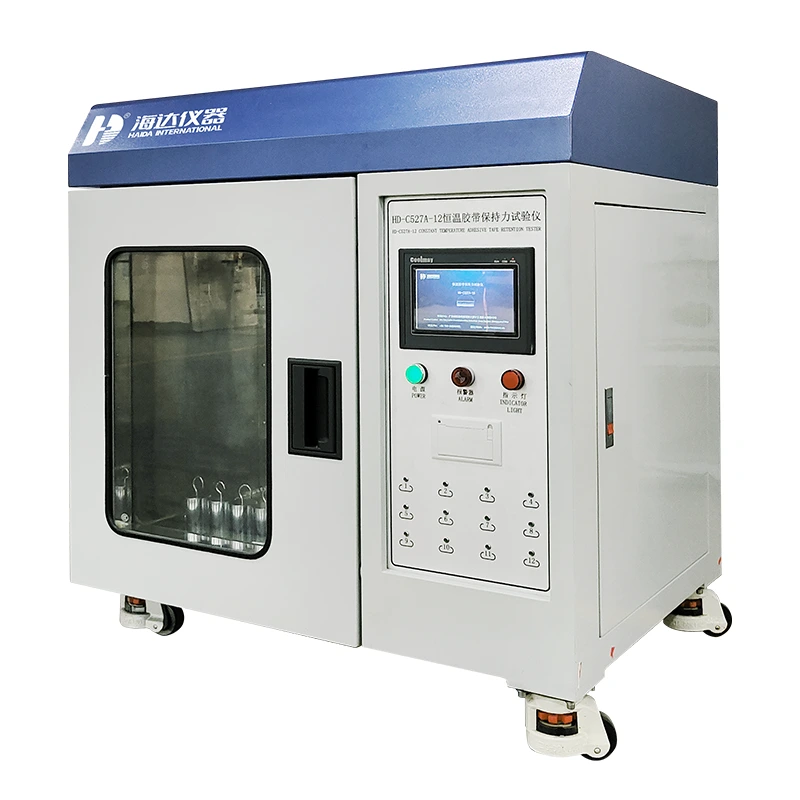

Constant Temperature Stick Viscosity Tester

Constant Temperature Stick Viscosity Tester is designed and manufactured in accordance with GB 4851 (pressure-sensitive adhesive tape stickiness test method) and plaster adhesion test method standard, and is suitable for pressure-sensitive adhesive tapes, self-adhesives, plaster, hot sol and other products to carry out stickiness test.

    oops...!

    no product data.

    Go to homepage

    Product Description

    Constant Temperature Stick Viscosity Tester is designed and manufactured in accordance with GB 4851 (pressure-sensitive adhesive tape stickiness test method) and plaster adhesion test method standard, and is suitable for pressure-sensitive adhesive tapes, self-adhesives, plaster, hot sol and other products to carry out stickiness test.


    Testign Standrad

    GB 4851 Test Method for Holding Tack of Pressure Sensitive Adhesive Tapes;

    JIS Z 0237 Test methods for pressure-sensitive adhesive tapes and pressure-sensitive adhesive sheets;

    ASTM D 3654 Test Method for Shear Tack of Pressure Sensitive Tapes.

    Constant Temperature Stick Viscosity Tester

    Product Specifications

    Item HD-D017
    Number of test groups 12 groups
    Timing mode PLC system setting program record
    Test Indicator Separate metal indicator light
    Inner box lighting 24W high temperature resistant lamp (can withstand 500°C)
    Test temperature normal temperature~200°C
    Temperature control mode The PLC system sets the program to adjust the temperature and constant temperature time
    Temperature display 0.1 °C
    Temperature control accuracy ±1°C
    Standard weight 1000g±5g (including the weight of the loading plate)
    Heating method Hot air circulation
    Test steel plate 150(L)mm×50(B)mm×2(D)mm
    Test steel plate Materials SUS304 mirrored stainless steel sheet
    Standard test plate roughness mirror 50nm±25nm
    Safety device Equipped with power-off protection device for over-temperature and Electric overload
    Machine material internal SUS304# stainless steel plate, external high-grade steel plate baking paint treatment
    Inner box size 448mm×350mm×540mm(L×W×H)
    Dimensions 960mm×660mm×960mm(L×W×H)
    Weight About 320kg
    Power supply AC220V 2100W

    Products Advantages

    Constant Temperature Stick Viscosity Tester 3
    Best Quality
    We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.
    Constant Temperature Stick Viscosity Tester 4
    Reasonable Prices
    We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.
    Constant Temperature Stick Viscosity Tester 5
    QC Team
    We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.
    book
    High-End Look
    When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

    Product Characteristics

    (I) Hardware Features

    1. This tester uses stepper motor components for testing, which has better position accuracy and motion repeatability;

    2. This tester uses dual guide rails and dual linear bearings, which have the advantages of accurate positioning, smooth movement, quietness, and easy maintenance;

    3. The overall appearance of this tester adopts a paint spraying process, which has high rust resistance and beautiful appearance.


    (II) Software Features

    1. This tester uses a touch screen for control, which is easy to operate and improves test efficiency;

    2. This tester has a built-in direct thermal line printer, and the measured value can be printed after the test is completed;

    3. This tester uses travel limit protection and abnormal fault alarm prompts to ensure safe operation.
