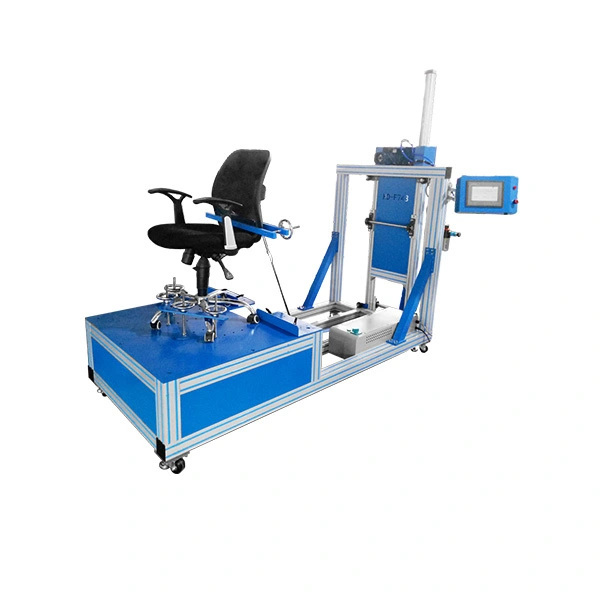

The machine is designed to test office chair arm ( vertical and horizonal test ) and back strength. It with PLC controller, touch screen interface to input test parameters, test force and times can be set.

GENERAL SPECIFICATIONS

Machine Dimensions: (W x D x H) 2450mmx1000mmx2250mm

Compressed air requirement: 6-7kg/ cm2

Electrical Consumption: 0.2KW

Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)

Gross Weight: 380kg

APPLICATION STANDARDS:

BIFMA X5.1-2017 section 5, 6, 12, 13, 14, 15

STANDARD FEATURES

Items	Description
Capacity	2kN Imported sensor (Durability test) 5kN Imported sensor (Strength test)
Load weight	109 kg (one set)
test speed	Durability test 5 ~ 20 times /min, Strength test 450mm/min
test force value	Durability test 450N ~ 1.5kN (cylinder driven) Strength test MAX 1.9kN (motor driven)
Display mode	Touch screen interface
control mode	PLC control
Setting time	1 ~ 999999 times (adjustable)
Overall dimensions	2450mmx1000mmx2250mm (LWH)
weight	About 250 kg
Air	Acuity 0.6 MPa
Power	1∮, AC 220V, 50 Hz. About 200W
Main test items	Chair back fatigue test and damage test, Chair armrest horizontal and vertical fatigue test and damage test

Configuration:

Configuration	Name	Details
Items	Documents	Operation Manual1 piece; Factory Inspection Report1 piece; Operation Video in USB flash disk with machine*1 piece
	Power line	1 piece
	Plug	1 piece(Per your local plug standard)
	USB flash disk	1G capacity *1 piece
	Force sensor	2KN Capacity 1 piece 5KN Capacity 1 piece
	Weights	109kg*1 set
	Air pipe	1Φ 8 tracheal * 1 piece
	Clamps	Chair seat fixing fixture 1 piece Handrail vertical clamp 1 piece Pull back fixture 1 piece Chair foot pressing block 1 piece Ribbon pressing block *1 piece

Reference Doc: BIFMA X5.1-2017

Section 5 Backrest Strength Test – Static- Type I Test Procedure:

A force of 667N (150lbf) or 1001 N (225 lbf) shall be applied to the backrest at the backstop position for 0ne minute. Angle 70 ± 10 degrees, If the backrest/tilt lock mechanism will not accept the load due to gradual silpping of the adjustment mechanism during the load application, set the backrest to its most rearward(stopped) position, then apply the specified load(s). Remove the load

Section 6 Backrest Strength Test – Static- Type II & III Test Procedure:

Same with section 5, only the force should be 667N (150lbf) or 1001 N (225 lbf), Angle 90 ± 10 degrees.

Section 12 Arm strength Test- Vertical- Static Test Procedure:

A force of 750 N (169 lbf) or 1125 N (253 lbf) shall be applied for one minute. Remove the force

Section 13 Arm strength Test- Horizontal- Static Test Procedure:

A force of 445 N (100 lbf) or 667 N (150 lbf) shall be applied for 15 second in the outward direction.

Remove the force.

Section 14 Backrest Durability Test - Cyclic - Type l Test Procedure:

For chairs with backrest widths less than or equal to 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 120,000 cycles.

For chairs with backrest widths greater than 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 80,000 cycles.

Section 15 Backrest Durability Test - Cyclic - Type Il and lll Test Procedure:

For chairs with backrest widths less than or equal to 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 120,000 cycles.

For chairs with backrest widths greater than 406 mm (16 in.) at the height of the loading point, apply the load to the backrest for 80,000 cycles.
