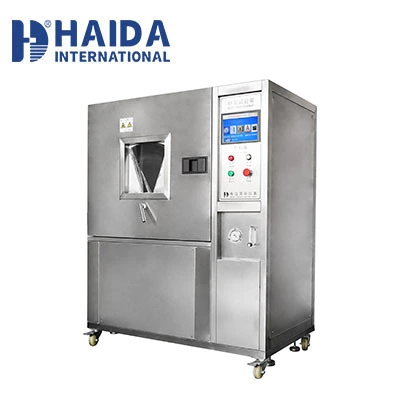

Battery Dust Test Chamber
Battery Dust Test Chamber
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1500*1200*1900mm
Power supply source: 3-phase, AC380V±10%,50Hz (can be appointed)
Gross Weight: 400kg
HS Code: 8479899990
STANDARD FEATURES
Item | Specification |
Internal dimension | 800W*800D*800Hmm |
External dimension | 1300W*1000D*1700Hmm |
Test sample | Size W20cm- L30cm-D15cm, weight 0.5kg |
Chamber material | SUS304 Stainless steel |
Specifications of square mesh sieve | Mesh hole 75um, mesh metal wire diameter 50um |
Talcum powder amount | 2kg/ m³ |
Airflow speed | No more than 2m/s |
Door | Left open door with tempered glass door |
Controller | PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s |
Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
Vacuum pump capacity | 60-600 L/H |
Fan | Centrifugal fan |
Safety protection devices | Meter over-temperature function, Phase shortage protection, Power short-circuit protection |
CHAMBER DESIGN FEATURES
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
DESIGN DRAWING AS PER IEC60529
