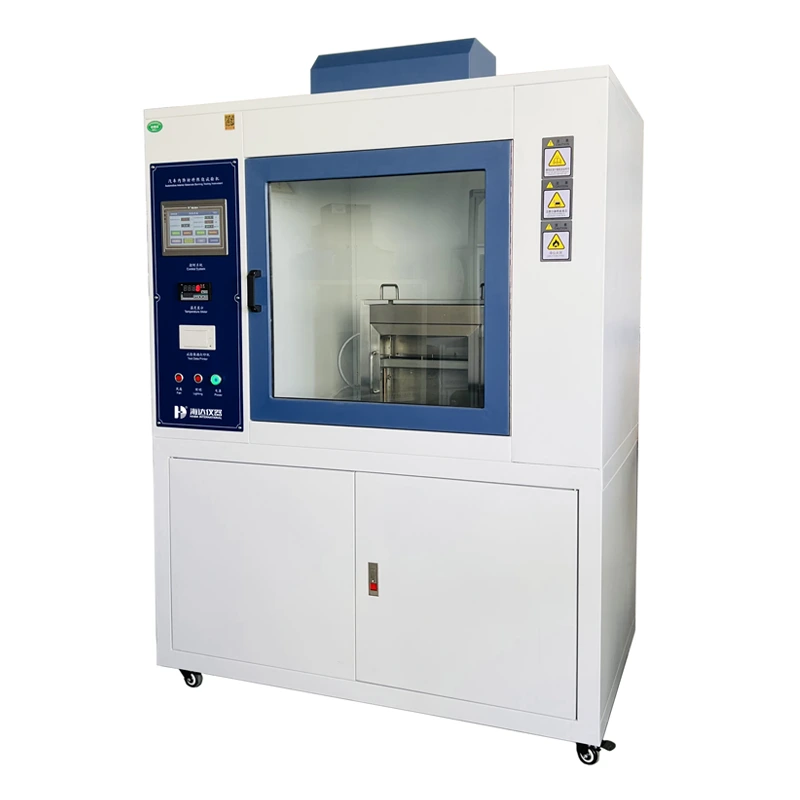

Automotive Interior Materials Flammability Tester

This flammability tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.

Model:

6021-HD

Inquiry

Write a Review

Product Description

Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.

Key Features:

Stainless steel combustion chamber: Resistant to smoke and gas corrosion.

Automated control system: Includes automatic ignition, gas supply, timing, and test termination.

User-friendly interface: 7-inch color LCD touchscreen with real-time data display and printing.

Compliance Standards: GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795

Automotive Interior Materials Flammability Tester

Product Specifications

Model	6021-HD
Control System	7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with built-in test data printer.
Display System	Real-time monitoring of flame application time, burning time, and burning speed. Controls include flame start/stop and combustion length input.
Overall Dimensions (L×W×H)	1200×700×1500mm
Combustion Chamber Dimensions (L×W×H)	385×204×360mm
Flame Application Time	Adjustable: 0–3200.0 seconds
Burning Time	Adjustable: 0–3200.0 seconds
Burner Angle	Fixed at 90° (vertical)
Burner Specifications	Nozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes
Flame Height	Adjustable: 20–100mm (standard-compliant)
Temperature Display	Digital readout; Resolution: 0.1°C
Steel Ruler	Length: 500mm; Accuracy: 1mm
Fuel Gas	High-purity liquefied gas (user-provided)
Configuration	Includes:
	• Control system
	• Combustion chamber
	• Burner assembly
	• Solenoid valve
	• High-voltage igniter
	• Temperature display
	• Signal control cables
	• Upper/lower sample holders
	• 500mm/1mm steel ruler
Power Supply	AC 220V, 50Hz
