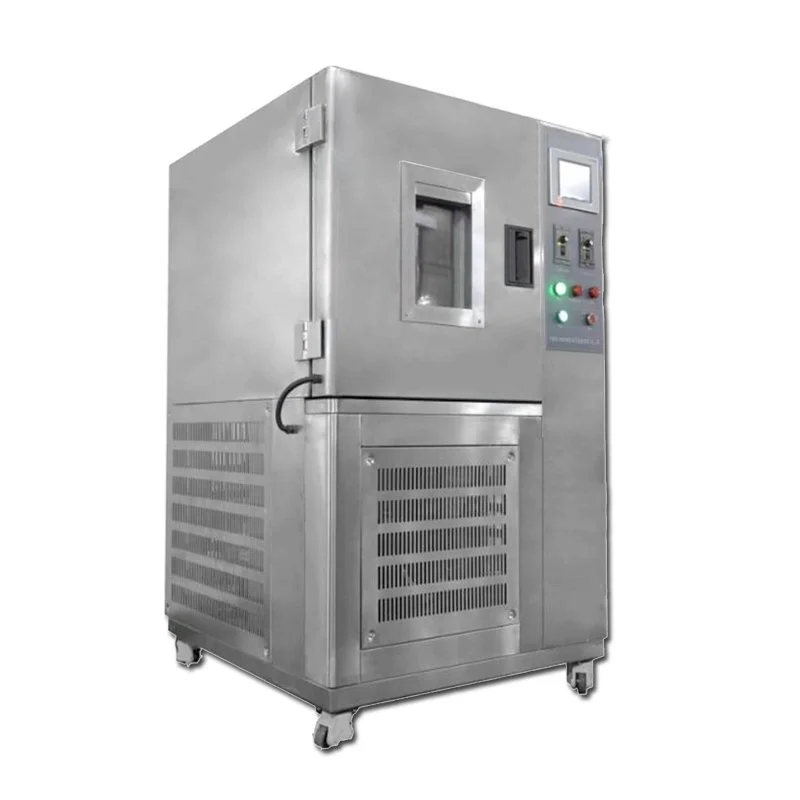

Programmable Ozone Aging Test Chamber

Programmable Ozone Aging Test Chamber

Ozone Aging Test chamber Video

Ozone Aging Test Chamber is widely used in aerospace, automotive motorcycles, military equipment, electrical and electronic, chemical metallurgy, quality measurement, post and telecommunications, ship railway and other institutions and colleges and universities and scientific research units.

Ozone Aging Test Chamber can be used for rubber products such as vulcanized rubbers, thermoplastic rubber, cable insulation sheath and other products, in the static tensile or continuous dynamic tensile deformation, or in the intermittent dynamic tensile and static stretching alternating deformation, the test chamber, which is exposed to the airtight air with constant ozone concentration and constant temperature, tests the specimen at predetermined time, from the surface of the specimen to the extent of the crack or other performance, to evaluate the ozone-resistant aging performance of the rubber.

1, With imported micro-computer LCD controller to control the temperature.

2, PID control

3, With auto calculation function to reduce the setting inconvenience.

4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto    calculate with high accuracy PID + SSR control

5, Temperature measurement: SUS#304, PT 100



The table parameters is for the company Standard Model parameters, we support customer customization parameters

1, Internal material adopts high quality mirror stainless steel for ozone resistance.

2, Insulation material: high-density glass fiber

3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

5, Chamber bottom has high quality caster for convenient move.

6, Observation window uses multilayer hollow tempered glass.

7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.



Standard Configuration:

1, Power line x 1pc

2, Sample holder x 1set

3, Fuse x 1set

4, Operation manual x 1set

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
