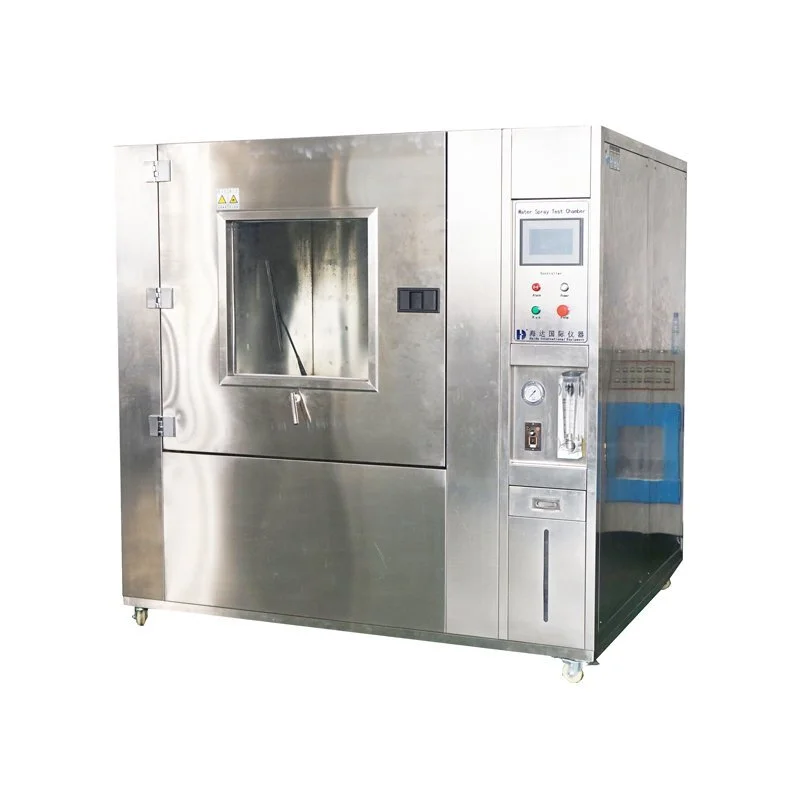

IPX9 Rain Test Chamber
IPX9 Rain Test Chamber
IPX9 Rain Test Chamber is used to test the water resistance; which is mainly for electronic and electrical products and solar lights, garden lights, buried lights, tunnel lights, car lights, fountain lights, the display...etc led lights series testing. It can also provide references for product design and quality control.
Item | Specification |
Internal chamber size | 1000Wx1000Dx1200Hmm |
External chamber size | 1500Wx1200Dx2100Hmm |
Spray water temperature | 80℃ |
Spray water pressure | 80～100bar (8000～10000Kpa) |
Water flow | 14～16L/min |
Spray water distance | 10～15cm |
Spray water angle | 0°, 30°, 60°, 90°, each angle spray for 30 seconds |
Sample rotatory table | 5rpm |
Water spray interval time | 30 seconds (adjustable) |
Water cycling system | Built-in chamber bottom for recycling |
Controller | PLC touch screen |
Chamber material | Internal: SUS304 stainless steel, external: stainless steel |
Power | AC380V, 50Hz, three phase |
